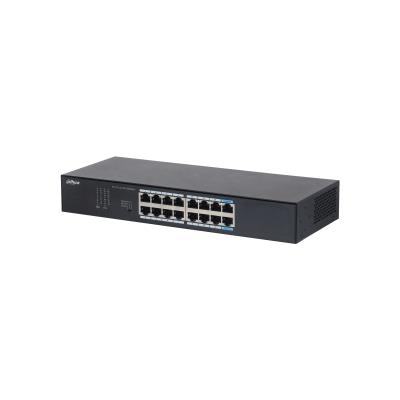

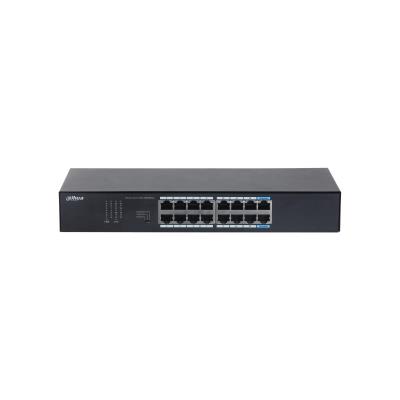

DAHUA S3016-16GT Unmanaged Gigabit Switch 16xRJ-45 Desktop/Wall-Mount Black (S3016-16GT)

  • Ports: 16x RJ-45 10/100/1000 Mbps gigabit ports.
  • Performance: 32 Gbit/s switching capacity with lag-free data transmission.
  • Modes: Features aggregation and isolation modes.
  • Design: Fanless full metal housing with great heat dissipation.
  • Delivery & Warranty: Fast shipping to Latvia, as well as Estonia and Lithuania. 2-Year Warranty for all clients (Business & Private).

Dahua

43,29€
€35.78 (bez PVN)

S3016-16GT | Type Unmanaged | Switch layer L2 | 16xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) | Switching capacity 32 Gbit/s | Forwarding rate 23.8 Mpps | Rack mounting Yes | Form factor Desktop/Wall-Mounting | Product colour Black | Power source DC | Power supply included Yes | Power consumption (typical) 7.8 W | Width 294 mm | Depth 119 mm | Height 44 mm | Weight 740 g

  • > 16 × RJ-45 10/100/1000 ports.
  • > The all-gigabit ports transmit data without lag.
  • > Features aggregation mode which aggregates uplink ports.
  • > Features isolation mode which isolates all the ports from each other.
  • > With its solid full metal design, the device has great heat dissipation and no fan.
  • > Supports rack mount, wall mount and desktop mount.
SummaryDahua Technology S3016-16GT. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 16000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: Desktop/Wall-Mounting
Unit Box Height0.075
Unit Box Length0.355
Unit Box Width0.215
Switch typeUnmanaged
Switch layerL2
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3u
10G supportNo
Copper ethernet cabling technology1000BASE-T/100BASE-TX/10BASE-T
Switching capacity32Gbit/s
Forwarding rate23.8Mpps
MAC address table16000entries
Jumbo frames supportYes
Jumbo frames12000
Packet buffer memory8.4MB
Rack mountingYes
Form factorDesktop/Wall-Mounting
Product colourBlack
Housing materialMetal
LED indicatorsYes
Power sourceDC
Power supply includedYes
AC input voltage100 – 240V
AC input frequency50/60Hz
Input current0.4A
Power consumption (typical)7.8W
Power over Ethernet (PoE)No
Operating temperature (T-T)0 – 40°C
Operating relative humidity (H-H)10 – 90%
Width294mm
Depth119mm
Height44mm
Weight740g
Package width353mm
Package depth215mm
Package height75mm
Package weight1297g
Unit Calculated Weight1.4kg
Product Net Weight0.74kg
Unit Calculated Volume0.005724cubm
Units per Shipping Box1
Shipping Box Weight1.4kg
Unit Width21.5cm
Shipping Box Height7.5cm
Unit Depth35.5cm
Shipping Box Depth35.5cm
Unit Height7.5cm
Shipping Box Width21.5cm
NameNET SWITCH 16PORT 10/100/1G/S3016-16GT DAHUA
Model nameS3016-16GT
SKU: DAHUA-S3016-16GT Category:

Based on 1 review

0.0 overall
1
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

  1. David Miller –

    Just bought the Dahua 16-port gigabit switch from apsardze24.lv and I couldn’t be happier. It’s solid, completely silent since it’s fanless, and handles data transfer smoothly without any lag. The ordering process was a breeze too. Highly recommend for a reliable network upgrade!

    David Miller –

How noisy is the DAHUA S3016-16GT during operation?

The device features a fanless full metal housing design, ensuring silent operation and efficient heat dissipation.

Where can I get technical assistance if I encounter configuration issues?

If you need technical help or documentation regarding the S3016-16GT model, please reach out directly to our technical support at [email protected].

What special operational modes does the DAHUA S3016-16GT offer?

It features an aggregation mode that aggregates uplink ports and an isolation mode that isolates all basic switching ports from each other.

What is the total switching capacity of the DAHUA S3016-16GT?

The DAHUA S3016-16GT features a switching capacity of 32 Gbit/s and a forwarding rate of 23.8 Mpps for lag-free data transmission.

Can the DAHUA S3016-16GT switch be mounted in a rack or on a wall?

Yes, this model supports rack mounting, wall mounting, and desktop mounting configurations to fit your physical installation requirements.

Does the DAHUA S3016-16GT support Power over Ethernet (PoE)?

No, the DAHUA S3016-16GT does not support PoE functionality. It is a standard non-PoE gigabit Ethernet switch.

Does the DAHUA S3016-16GT unmanaged switch include a power supply in the box?

Yes, the power supply unit is included in the package along with the device.

What is the warranty coverage when buying from Tst.apsardze24.lv?

Tst.apsardze24.lv provides a 2-year warranty for both private and business clients, with local support available.
