DAHUA CHS4206-4ET-90 Managed L2 Fast Ethernet PoE Desktop Switch Blue (CHS4206-4ET-90)

DAHUA CHS4206-4ET-90 Managed L2 Desktop Switch with 4 Fast Ethernet PoE ports, 90W budget, and cloud management support. Fast shipping to Latvia, Estonia, and Lithuania. 2-Year Warranty for all clients.

Dahua

55,49€
€45.86 (bez PVN)

CHS4206-4ET-90 | Type Managed | Switch layer L2 | Cloud-managed Yes | Web-based management Yes | 4xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) | 2xInstalled SFP modules quantity | Port mirroring Yes | Switching capacity 4.8 Gbit/s | Forwarding rate 3.57 Mpps | Form factor Desktop | Product colour Blue | DIN rail mounting Yes | Power source DC/PoE | Power supply included Yes | Power over Ethernet (PoE) Yes | Total Power over Ethernet (PoE) budget 90 W | Width 110.4 mm | Depth 154.3 mm | Height 30 mm | Weight 320 g

  • Features managed mode
  • Complies with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab and IEEE802.3z standards
  • Supports network topology visualization
  • Supports mobile management by app
  • Supports one-stop maintenance
  • With its full metal design and dust-proof enclosure, it can be used in a wide range of temperatures

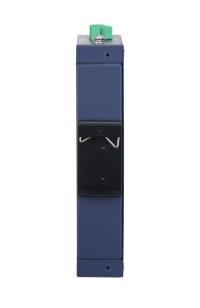

  • Supports desktop mount and DIN rail mount
SummaryDahua Technology CHS4206-4ET-90. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4, Installed SFP modules quantity: 2. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE…. DC input voltage: 48 – 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Form factor: Desktop
Unit Box Height0.075
Unit Box Length0.27
Unit Box Width0.24
Switch typeManaged
Switch layerL2
Cloud-managedYes
Web-based managementYes
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity4
Installed SFP modules quantity2

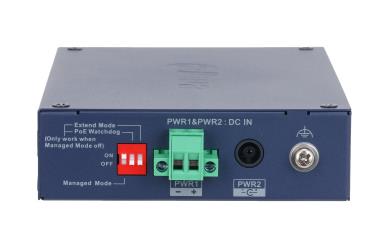

Power connectorDC-in jack
Networking standardsIEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
10G supportNo
Port mirroringYes
Broadcast storm controlYes
Flow control supportYes
VLAN supportYes
Number of VLANs32
Switching capacity4.8Gbit/s
Forwarding rate3.57Mpps
MAC address table8000entries
Jumbo frames supportYes
Jumbo frames9216
Packet buffer memory4MB
DHCP featuresDHCP client
Loop protectionYes
Multicast supportYes
Rack mountingNo
StackableNo
Form factorDesktop
Product colourBlue
Housing materialIron
Reset buttonYes
DIN rail mountingYes
IK codeIK06
International Protection (IP) codeIP30
Mean time between failures (MTBF)1852444.63h
Power sourceDC/PoE
Power supply includedYes
Power supply locationExternal
DC input voltage48 – 57V
Input current2 – 1.69A
Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget90W
Operating temperature (T-T)-30 – 65°C
Storage temperature (T-T)-40 – 85°C
Operating relative humidity (H-H)10 – 90%
Storage relative humidity (H-H)5 – 95%
Width110.4mm
Depth154.3mm
Height30mm
Weight320g
Cables includedAC
Quick start guideYes
ManualYes
AC adapter includedYes
Package typeBox
Terminal block includedYes
Package width239mm
Package depth266mm
Package height77mm
Package weight870g
Compliance certificatesCE
Unit Calculated Weight1.13kg
Product Net Weight0.32kg
Unit Calculated Volume0.005559cubm
Units per Shipping Box8
Shipping Box Weight9kg
Unit Width24cm
Units per Pallet0
Shipping Box Height25.5cm
Unit Depth27cm
Shipping Box Depth54.5cm
Unit Height7.5cm
Shipping Box Width32cm
NameNET SWITCH 6PORT 4POE 100M/CHS4206-4ET-90 DAHUA
Model nameCHS4206-4ET-90
SKU: DAHUA-CHS4206-4ET-90 Category:

Based on 0 reviews

0.0 overall
0
0
0
0
0

Only logged in customers who have purchased this product may leave a review.

There are no reviews yet.

What is the total Power over Ethernet budget for the CHS4206-4ET-90 switch?

The switch provides a total Power over Ethernet (PoE) budget of 90 W across its 4 Fast Ethernet ports, supporting IEEE 802.3af, 802.3at, and 802.3bt standards.

Is the power supply included with the DAHUA CHS4206-4ET-90 switch?

Yes, an external power supply unit and the required AC cables are included in the retail box.

Is this an official EU version with full firmware updates?

Yes, all units sold by Tst.apsardze24.lv are official versions fully compatible with standard management software and receive regular firmware updates.

What warranty and local support are provided with this purchase?

At Tst.apsardze24.lv, we provide a full 2-year warranty for all clients, backed by our local service capabilities to ensure fast and reliable technical assistance.

What are the operating temperature limits for outdoor or industrial cabinet placement?

Thanks to its full metal design and dust-proof IP30 enclosure, it operates reliably in a wide temperature range from -30 °C to 65 °C.

Can the DAHUA CHS4206-4ET-90 Managed L2 Fast Ethernet PoE Desktop Switch be mounted on a DIN rail?

Yes, this switch supports both desktop mounting and DIN rail mounting out of the box, with the necessary terminal block and installation guides included in the package.

Does this model support cloud management and mobile applications?

Yes, the CHS4206-4ET-90 features cloud-managed capabilities, web-based management, and supports mobile management via application alongside network topology visualization.
